HACC-TSK-P
Line sensing thermostat enclosure
Ex ‘d’ explosion-proof enclosure thermostat control
Details

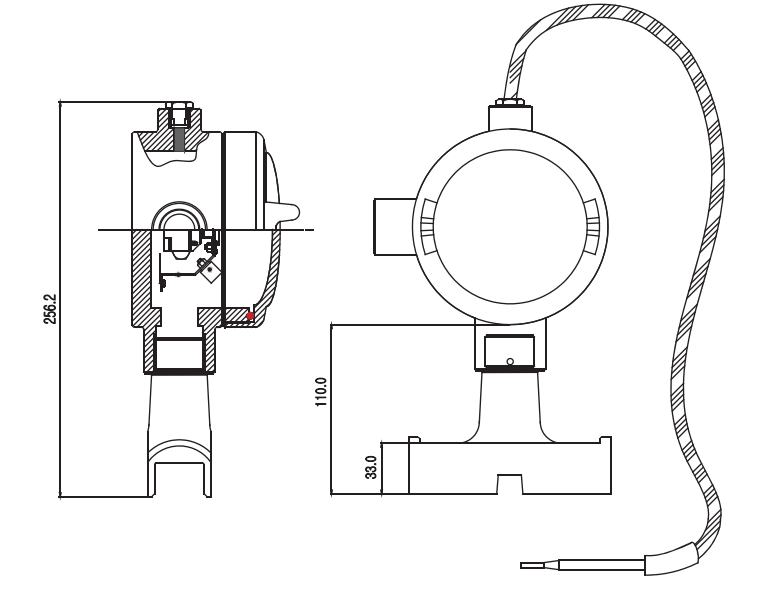

Assembled height : 257mm, width : 132mm, depth : 64mm.
Ex d IIC T6 (flame-proof), Ingress protection IP65
Operating temp -20˚C < Ta < 50˚C
Cable entry 3/4″PF compatible to conventional pipe thread
Gasket and cable seal : flame-proof silicone rubber
Armoured flexible Conduit for Capillary Sensor Length 75cm, Sensor
diameter 6.0mm
HACC-TSK-P is the explosion-proof aluminium enclosure fitted with thermostat
control unit, which detects the temperature of each circuit of pipeline or vessel and
locally controls it for ultimate efficiency and safety. It is made of special-grade
aluminium to meet the required pressure tests against explosion or ignition of
explosive gas or dust. The flame-proof gaskets stops the ingression of water and
dust.
Product Image
