FB-BTK

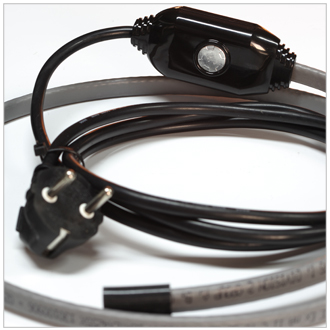

Pre terminated heating cable set with bimetallic thermostat
water pipeline freeze protection
Details
Freeze protection for water pipeplines
Gutter tracing
Anti-icing for outdoor facilities
Ready-for-use pre-terminated self-regulating
heating cable set
UV resistant polycarbonate housing for
tough outdoor use
Dust- and water-proof IP54 with silicone rubber
seal and termination
Bimetallic thermostat control for saving electric
energy
Two(2) LED lamp indicators
All international electric cord and plug types are
avaiable
The length of heating cable and electric cord can
be customized
HSR polymeric PTC (self-regulating) heating cable
Max. exposure temperature up to 85℃ (185°F)
(Power-OFF)
Ambient temperature -40℃ to +40℃
Rated voltage 200 ~ 250Vac
Available in 10, 16, and 24 watts/m
Heating cable dimension 11.2mm x 5.6mm
Standard heating cable length
1m, 2m, 3m, 5m, 7m, 10m
Heating cable out jacket Flame retardant polyolefin
Gray or Black
Flexible power cord 3C x 2.0mm , HVCTF 90℃
Flame retardant
Standard power cord length 2m
Bimetal operating temperature +15℃ ± 5℃
On-Off differential 30±15K
Assembly housing material PC(black)
+ Silicone rubber
Switching capacity 250V / 6A
Typical Installation
