VSR-D
Self-regulating heating for freeze protection and temperature maintenance
Details
Solco Pyroelec VSR Self-regulating heating cables perform the best in the below listed applications:
Freeze Protection for water pipeline(s), Battery supplied low voltage applications etc
Temperature Maintenance for fuel feedline(s) in the automotive sector
Snow melting for the outdoor facilities eg. road, roof
Floor warming for commercial building
Heated panel
to It will not burn or overheat even when overlapped
It self-regulates thermal performance in response to temperature
It can be cut to any length to suit any installation condition
Independent heat output control along the length
Soft (power) switching (which improves energy savings and efficiency) and gives a longer service life
Easy termination for power connection and splicing
Max. Maintain temperature(Power-on) 110℃ (230°F)
Max. Continuous exposure temperature(Power-off)
135℃ (275°F)
Rated voltage 12, 24 Vdc
Rated power output 12, 17 watt/m@10℃
Approx. Dimensions
9.6mm x 2.1mm without insulation
11.1mm x 3.6mm insulation
11.3mm x 5.6mm outer jacket
Bus wire – ASTM B355 Class 2 NPC AWG16
Outer jacket (Optional)
FR XLEVA(CX)
Exposure to aqueous inorganic chemicals
Fluoropolymer(CF)
Exposure to organic chemicals or corrosive
Power Output Graph
Circuit Breaker Selection

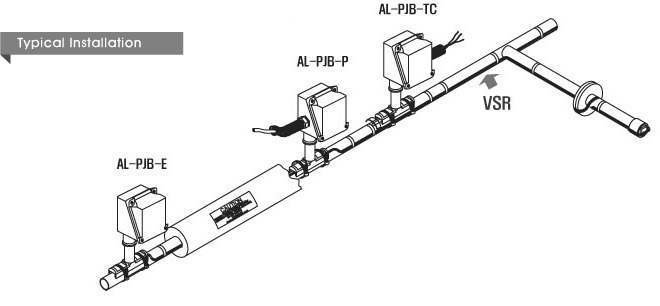

Typical Installation
