PYEX-AE
End termination
Aluminium enclosure
Details
Protection type : Ex eb IIC
Applicable heating cables in hazardous location : FBL, FBH*, FBX
Temperature classification
FBL : T6 (85℃)
FBH : T4 (135℃)
FBX15x / 30x / 45x : T3 (200℃)
FBX60x : T2 (220℃)
Ambient Temperaturerange : -55˚C to 40˚C
Max rated voltage 277Vac
Max load current : 30A
Ingress Protection : IP66 (when assembled with heating cables)
Enclosure Material : Aluminium
Gasket and Seal : Flame-proof silicone rubber
Maximum power conductor cross-section : 15mm²
Approval : KCs, ATEX, IECEx
Reference standards : IEC60079-0, IEC60079-7, IEC60079-30-1
PYEX-AE is the explosion-proof aluminium enclosure specially for heating cable installation
PYEX-AE – P
ⓐ ⓑ
ⓐ Model
ⓑ Function
P : Power connection
E : End termination
Product Image

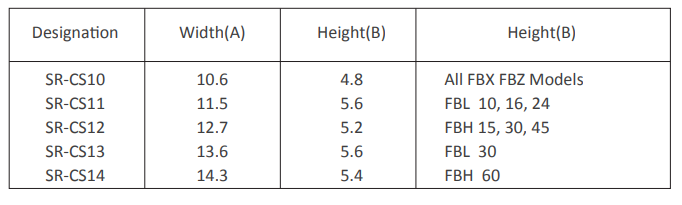

Seal Selection and Applicable Heaters
