SHC
Teflon insulated series heating cable vessel heating
and long distance freeze protection
Details
Road crossings, Stairs to Subway Station
Entrance to Residential Buiidings
Maintenance route for power plant or sub-station
Entrance to resort building or ramp road in golf course
Military building ex) heliport or airport
Snow melting system
The most advanced and reliable snow melting system for the normal road, ramp or tunnel entrance to prevent traffic problem specially when snowing in winter season
Max. Operating Temp 100℃
Max. Exposure Temp 200℃
Asphalt Application Temp. (110~150 C)
Max. voltage 600 vac
Heat Density 50 ~ 350 watt/m²
Approx. 7 ~ 11mm
(Depending on outer jacket selection)
Outer Jacket (Optional)
A : XLEVA For asphalt finish
C : PVC For concrete finish
AS : XLEVA + SUS Amouring
(Heavy duty asphalt road)
CS : PVC + SUS Armouring
(Heavy duty concrete road)
Easy Operation and fast response
Save installation time and cost by pre-formed
heating mat in the factory
99{f393a0a1977b57749fe2e770e994ad2777821ff8ed0367e894e512a134821a7f} Electromagnetic Field under control
Flexible and excellent mechanical strength
Excellent resistance to high temp,
oil and chemicals
Long Lifetime

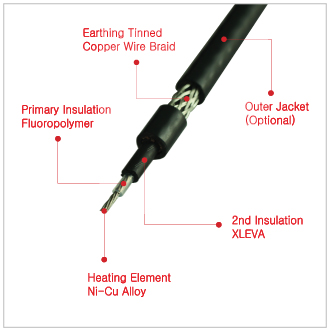

Product image

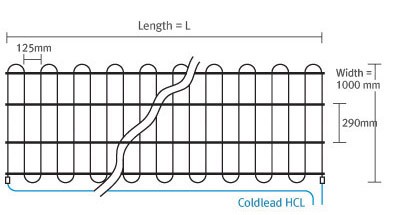

Pre fabricated matt construction
Control system
Installation details
